Z bar bracket is a secure hanging solution, designed to hang anything from small lightweight to heavy over-sized objects. These are most commonly used for a wide range of commercial and residential applications. Ranging from re-organizing space to mounting wall displays such as picture frames or shelving. Perfect for transforming work-space. Z bars can be used in pairs or individually. For instance, one cleat mounted to the wall and a matching edge cut straight into the object. The interlocking design of the two cleats helps to temporarily lock the frame in a secure position.

SUMMARY

Metal vs Wooden French Cleats	How to hang? (Step-by-Step Instructions)	Applications	How to order?
French Cleats are available in two types of materials, such as Metal and Wood.	The installation takes a few simple steps. Our goal is to have one cleat attached to the picture or an object. While the other piece is attached to the wall.	Here we will explore common application and use case scenarios	Locate, Qty, Price, and Order

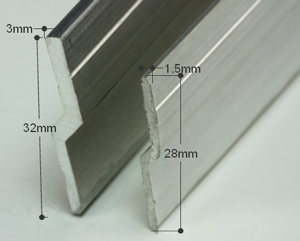

French Cleats are available in two types of materials, such as Metal and Wood. Compared to Wooden Cleats, Metal Cleats are more expensive. From the distance from the wall, the depth of the Metal Cleats are comparably less to Wooden Cleats. Metal Cleats are made from heavy-duty and extruded aluminum. Which makes it an ideal material that is durable and resistant from wrapping. Metal Cleats are preferably used for both indoor and outdoor applications, and it can naturally resist rust. When Mounted to the wall, Metal Cleats are hidden from sight due to its thin nature compared to thick Wooden Cleats. Traditionally, Wooden Cleats are more natural compared to Metal Cleats, and are most commonly used for cabinets or wooden subjects.

The installation takes a few simple steps. Our goal is to have one cleat attached to the picture or an object. While the other piece is attached to the wall. Brackets can either be used vertically or horizontally with considerations. Z Bars are secured with screws. The interlocking mechanism allows the object to lock into position.

To determine the length of the Z bar, it can be the length of the object or it can be slightly shorter than the object, this allows space to adjust.

Step 1: Setup your Z bar layout

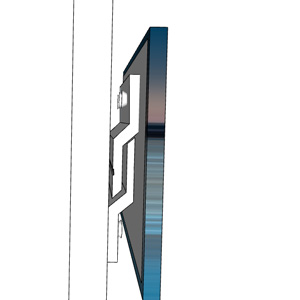

With a pencil, mark a reference line on the wall. Use a ruler, or if you have a laser level, use it to draw a straight line along the wall. Either mark from ceiling downwards or floor upwards to create the reference point. When installed the brackets will be hidden, so it does not matter where it is drilled; thus the cleats can be screwed into the wall separately from the frame. It is important to attach the Z bars in the right direction. The flat side is attached to the wall with a 45 degree angle on one end facing upwards. The other Z bar is attached to the picture frame being clipped upside down. Creating a slide/locking effect.

Step 2: Mount the Z bar to the wall

For metal, follow reference screw holes. For wooden, based on the length of the bar mark screw holes across the surface.

Step 3: Mount the other Z bar to the frame

Mark a reference line and attach the other Z bar to the back of the frame. Remember the flat side is attached to the frame and the shape is installed upside down.

Step 4: Slip into position

Finally, place the frame slightly above the wall mount, and slide the frame into position.

Metal reference screw holes.

Hanging system for Cabinet, Signage display, Store fixture, Home fixtures, Head board, Shelving, Hanging storage, Mirror mounting, Panels, Artwork / Picture Frames, Heavy Frames, Di-bond Dry Mount, Plaque Mount and a wide variety of hanging systems.

Common Professional and Industrial usage: contractors, designers, engineers, DIY project, architects, custom home designers, and project managers.

Use Case Scenario:

Scenario 1: Multiple rows of Z bar can be transformed and rearranged into tools wall organizer.

Scenario 2:With the support of the floor or surface, and in cases of non-load bearing scenarios, Z bar can be used vertically. However, it is limited because it can slide when pushed from one side.

Along with the Z Bar Hanging system, there are many unique hanging solutions . For more information about wall-mounting artwork, read our Hanging Wall Art article.

1. Once you land on our webpage. Click on Products. This can be accessed on the main navigation bar.
2. Slightly hover over Products on the main navigation bar to find the Art Supplies Page. Or either click on the Products button to access all lists of products. Scroll down to find Art Supplies.
3. Here you will find Products and Sub-category of Products. Under Framing, Click on Framing Hardware.
4. Here you will find a list of products. For Metal Z Bars Click on French Cleats - Z Bar Bracts. For the Wooden option, click on French Cleat- Wood. Pricing is available under the product list based on the size and type. Z bar can be purchased individually or in packs.
5. Enter QTY based on the stock size available and Add to Cart.
6. This will take you to the Shopping Cart Page, double check your order or update. Under Note selection note any specific details or questions regarding your order. Once you are done, Click Checkout to complete your order.
