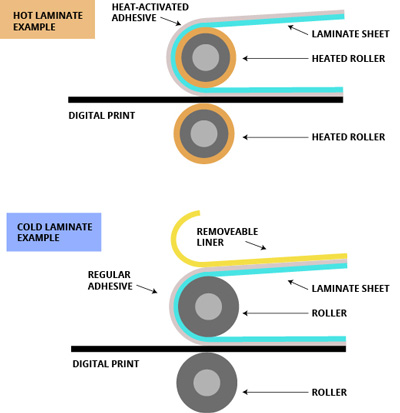

Heated roll laminators will melt the glue that has been applied to the lamination film, which will seal the two films around the print. This is the most common method of lamination, as it is often lower-cost, has a high adhesion level, and is not affected by moisture during the application.This process is also called “thermal lamination”.

Cold laminators rely on the film’s internal adhesive to stick to one another. This method is recommended when a print is sensitive to heat or has adhesion problems.

In both processes, the print is put through two rollers to ensure a tight, smooth, and seamless look. This will protect the document or print on both sides, as well as along the edges. The number of rollers involved can also affect the quality of the lamination. 2-roller machines are the most economical, and are often found in smaller laminators found in homes or offices. 4 rollers are more consistent and thorough, while 6-roller machines are often used for photo quality artwork with bubble-free lamination. The more rollers a machine has, the more likely it can provide a consistent and even heat distribution.

Most laminators protect both sides of a document or print. While single-side lamination is also achievable, it is more difficult to do and less common to find.

• Increased durability, allowing the print to withstand frequent use

• Protection against contaminants such as fingerprints, smudges, stains, tears, wrinkles, marks, grease, dirt, moisture

• The benefits of lamination

• Improved appearance by enhancing ink colors of the printed material, creating more vibrant, professional look

• Adds rigidity and strength

• Fully transparent

• Low cost, and due to increased lifespan of prints, saves money on reprinting

• Because of its plastic surface, they can also make great dry erase boards

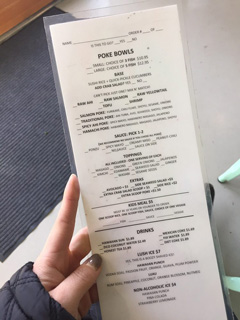

With a hard laminate on top, menus are protected
from spills and wear-and-tears.

• 1.5 and 3 mil. These are super thin and will make your documents flexible. Often used in offices and schools, they provide some protection, but are at risk of peeling and breaking when the document is folded or creased.

• 5 mil. These are fairly strong, and will prevent your document from being folded or crumpled. They are also more or less waterproof.

• 7 and 10 mil. These are the strongest thicknesses, and are nearly indestructible once laminated with the print. Since they are also capable of protecting documents from UV rays, they are most often used on outdoor signs, as well as ID cards and security badges.

When purchasing a laminating machine, make sure the film thickness is compatible with your machine!

Laminating finishes also come in a variety of sheen levels. They can come in gloss, satin/lustre, or matte, but the most common options are gloss and matte.

• Gloss laminates - these types of laminate are highly reflective, but also deepen colors and are very eye-catching. They’re glass-like and are excellent for pieces that are meant to grab your attention: covers, signs, showroom displays, etc.

• Matte laminates - these are softer in appearance, and have reduced glare. They make an excellent choice for material that needs to be read, such as maps, menus, etc. They are also popular among artists to seal in posters and prints.

• UV laminates - these laminate films are specially engineered with ultraviolet inhibitors to reduce graphic fade and prevent ink from deteriorating. The inhibitors are usually either UV absorbers or stabilizers, which will either absorb or neutralize UV light before it can harm the ink beneath. UV laminates can protect the print from UV damage by slowing the ink fading process, but cannot guarantee the print from being damaged by UV light eventually. Usually most UV laminates for outdoor sign usage is guaranteed for six months.

With lamination, you can also have a sealed edge or a flush edge. Each as it’s own pros and cons.

• Sealed edge - this kind of edge means the lamination film extends beyond the edge of a print, creating a clear border around it. This means the edges are fully sealed from moisture or damage.

• Flush edge - this kind of edge is achieved when the border of the laminate is sliced off along the edge of the print, so only the front of the back of the print shows laminate. This exposes the edge of the print to the environment, so moisture can seep within the core of the print. Because this type of laminate is not as durable, it is only chosen for aesthetic reasons

Laminates come in all sorts of thicknesses and sheens. In the example above, the business cards are laminated with a sealed edge.

An example of a flush edge, with a satin-matte laminate.

Roll laminators usually use two rolls of laminating film - one above the feed tray, and one below it. The print is placed on the feed tray and gently pushed towards the laminator. The rollers pull the document along with the film. The print re-appears on the other side of the machine fully laminated, and often requires a bit of trimming along the edges.

The greatest benefit of laminating film is their versatility. They can come in various finishes, weights and thickness, such as (but limited to) matte, matte UV, gloss, etc. Lighter films are especially excellent for large, artistic displays, as they can be nearly undetectable with the naked eye.

An example of an industrial-grade laminator.

That being said, laminates can still be found in the art world. Plaque mountings, for example, are all finished with a matte laminate on top in order to protect the poster or certificate from damage and moisture. Because the film is a softer and matte, it is hardly noticeable, and thus appears more timeless. With the edges of the print also sealed alongside the wood, there is less risk that the laminate will be “opened”, as the wood would also have to be cut to break the bond. This all helps with the print’s protection, as well as showcasing its true colors without reflective interference.

If you have any questions about the printing process for laminating your print or posters, do not hesitate to contact us. Our friendly and knowledgeable staff are always happy to help you get exactly the product you are looking for.
